MG1 / MG20 / MG12 / MG13

Working Condition: Used in centrifugal rotary pumps, agitators and other operating equipment for all chemical liquids that are not harmful to synthetic rubber. pressure: ≤…

Send Email

Leave Message

Single Mechanical Seal

Working Condition:

Used in centrifugal rotary pumps, agitators and other operating equipment for all chemical liquids that are not harmful to synthetic rubber.

pressure: ≤ 1.2 MPa

Speed: ≤ 12 m/sec

Temperature: -30℃ to 200℃

Materials:

Stationary ring: Ceramic / SiC / SSiC / TC

Rotary ring: Carbon / SiC / SSiC/ TC

Secondary seal: NBR / EPDM / VITON

Spring & Metal parts: SUS 304 / SUS 316L

Features:

Rubber bellows structure with a non-clogging large spring design. The static
ring assembly can be paired with multiple configurations and is designed to
meet the assembly dimensions of the international standard ISO 3069 and the
advanced European standard DIN 24960. The dynamic assembly is compatible
with static assemblies such as G60, G50, G6, G4, G9, G606, and others.

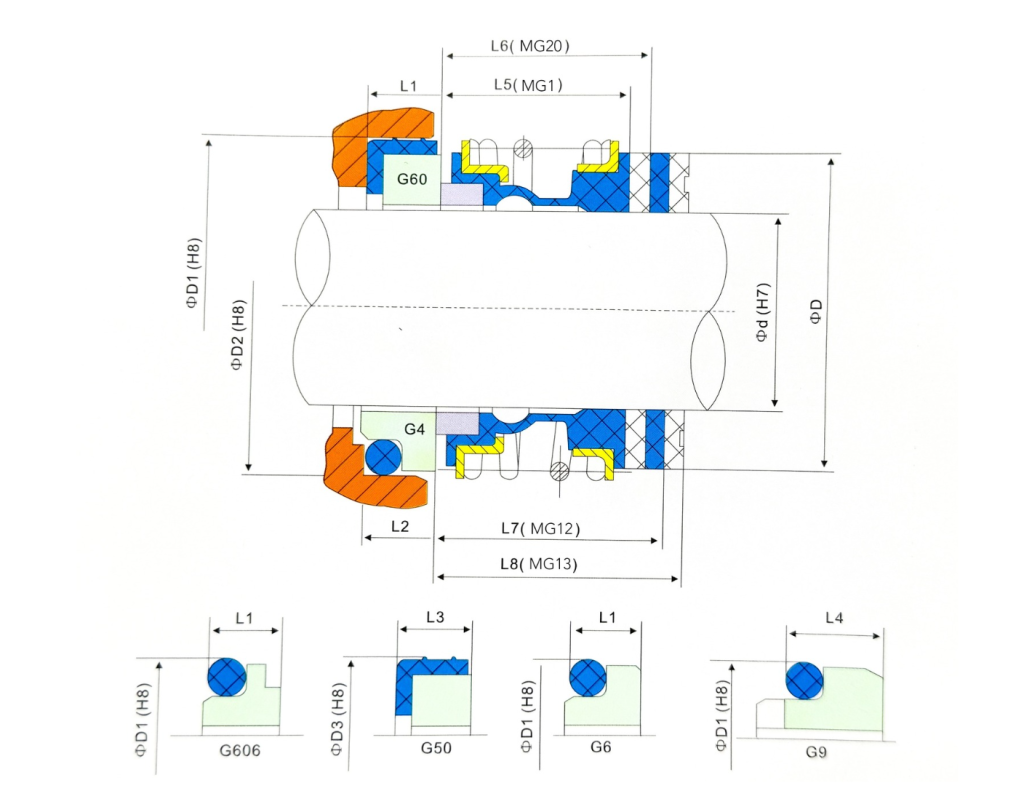

Specification(mm)	d	D	D1	D2	D3	L1	L2	L3	L4	L5	L6	L7	L8
MG-10	10	22	21	19.2	24.6	6.5	6.5	9	10	14.7	25.5	26	33.5
MG-12	12	24.5	23	21.6	27.8	6.5	5.5	9	10	15.2	25.5	26	33.5
MG-14	14	28	25	24.6	30.95	6.5	5.5	10.5	10	17.2	25.5	28.5	33.5
MG-15	15	28	27	24.6	30.95	6.5	6.5	10.5	10	17.2	25.5	28.5	33.5
MG-16	16	28	27	28	30.95	6.5	7.5	10.5	10	17.2	25.5	28.5	33.5
MG-18	18	31.5	33	30	34.15	7.5	8	10.5	11.4	19.7	25.5	30.1	37.7
MG-19	19	36.5	35	35	34.15	7.5	7.5	10.5	11.4	21.7	25.5	30.1	37.7
MG-20	20	36.5	35	35	35.7	7.5	7.5	10.5	11.4	21.7	25.5	30.1	37.7
MG-22	22	36.5	37	35	37.3	7.5	7.5	10.5	11.4	21.7	25.5	30.1	37.7
MG-24	24	42	39	38	40.5	7.5	7.5	10.5	11.4	22.7	25.5	32.7	42.7
MG-25	25	42	40	38	40.5	7.5	7.5	10.5	11.4	23.2	25.5	32.7	42.7
MG-28	28	48.5	43	42	47.65	7.5	9	12	11.4	26.7	33.5	35.2	42.7
MG-30	30	48.5	45	45	50.8	7.5	10.5	12	11.4	26.7	33.5	35.2	42.7
MG-32	32	53	48	48	50.8	7.5	10.5	12	11.4	27.7	33.5	35.2	47.7
MG-33	33	53	48	50	54	7.5	11	12	11.4	27.7	33.5	35.2	47.7
MG-35	35	56.5	50	52	54	7.5	11	12	11.4	28.7	33.5	35.2	47.7
MG-38	38	58.5	56	55	57.15	9	10.5	12	14	30.2	33.5	36.2	46.2
MG-40	40	61.5	58	58	60.35	9	10.8	12	14	30.2	33.5	36.2	46.2
MG-42	42	65	61	62	63.5	9	12	12	14	30.2	41.5	36.2	51.2
MG-43	43	65	61	62	63.5	9	12	12	14	30.2	41.5	36.2	51.2
MG-45	45	67.5	63	64	63.5	9	11.5	12	14	30.2	41.5	36.2	51.2
MG-48	48	70	66	68.4	66.7	9	11.5	12	14	30.7	41.5	36.2	51.2
MG-50	50	73.5	70	69.3	69.85	9.5	11.5	13.5	15	30.7	41.5	38.2	50.7
MG-53	53	78	73	72.3	73.05	11	12.5	13.5	15	33.2	41.5	36.7	59.2
MG-55	55	80.5	75	75.4	76.2	11	13.5	13.5	15	35.2	41.5	36.7	59.2
MG-58	58	85	78	78.4	79.4	11	13.5	13.5	15	37.2	41.5	41.7	59.2
MG-60	60	88	80	80.4	79.4	11	13.5	13.5	15	38.2	41.5	41.7	59.2
MG-65	65	93	85	85.4	92.1	11	13	16	15	40.2	49.5	41.7	69.2
MG-75	75	106.5	97	99	101.6	11.5	14	16	18	40.2	52.5	49	69
MG-68	68	96	90	91.5	95.25	11.5	13.7	16	18	40.2	49.5	41.3	69
MG-70	70	99	92	92	95.25	11.95	13	16	18	40.2	49.5	49	69
MG-80	80	111.5	105	104	114.3	12	15	20	18.3	40.2	56.5	48.2	78.2
MG-85	85	119.5	110	109	117.5	14	15	20	18.3	41.2	56.5	46.2	76.2
MG-90	90	126.5	115	114	123.85	14	15	20	18.3	45.2	59.5	51.2	76.2
MG-95	95	131.5	120	120.3	127	14	16	20	17.3	46.2	59.5	51.2	76.2
MG-100	100	136.5	125	123.3	133.35	14	16	20	17.3	47.2	62.5	51.2	76.2
