Working Condition:
Pressure: ≤ 0.5 MPa
Speed: ≤ 8 m/sec
Temperature: -20℃ to 100℃
Medium: Submersible pumps, sewage pumps, applied to the muddy water, sewage water or weakly corrosive fluids with soild grains.
Material:
Stationary: Ceramic / SiC / SSiC / TC
Rotary ring: Carbon / SiC/ SSiC/ TC
Secondary seal: NBR / EPDM / VITON
Spring & Metal parts: SUS 304 / SUS 316L

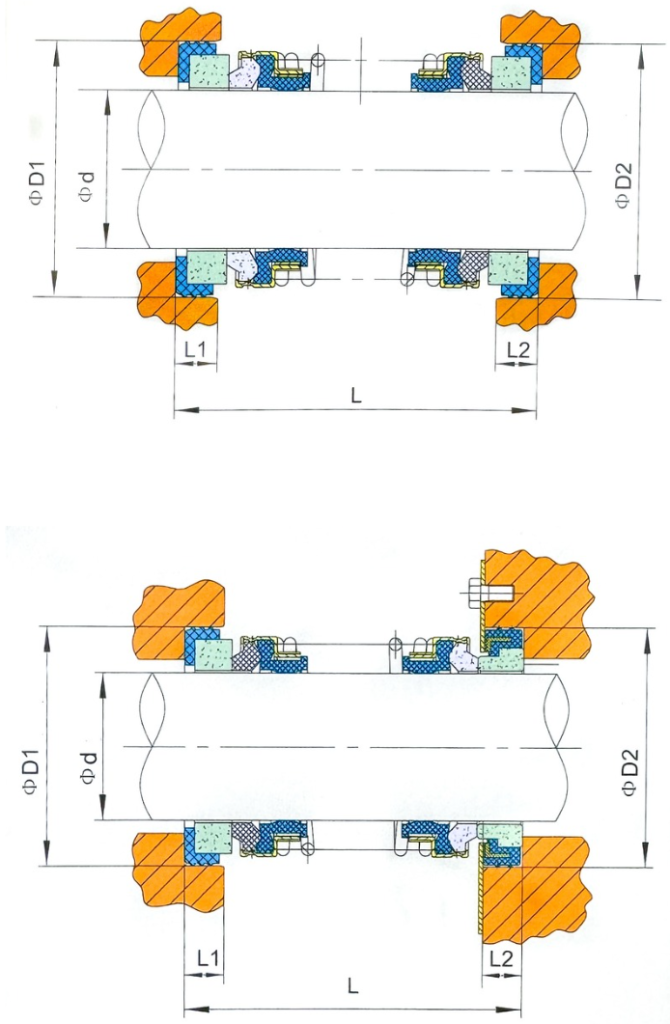

| Specification (mm) | d | D1 | D2 | L | L1 | L2 |
| ED560-13 | 13 | 25 | 25 | 36 | 5 | 5 |
| ED560-14 | 14 | 30 | 30 | 36 | 5 | 5 |
| ED560-15 | 15 | 30 | 30 | 36 | 5 | 5 |
| ED560-16 | 16 | 30 | 30 | 36 | 5 | 5 |
| ED560-20 | 20 | 38 | 44 | 49 | 7 | 7 |
| ED560-25 | 25 | 44 | 50 | 51 | 7 | 7 |
| ED560-30 | 30 | 50 | 57 | 59 | 9 | 8 |
| ED560-35 | 35 | 58 | 64 | 61 | 9 | 9 |
| ED560-40 | 40 | 64 | 70 | 64.5 | 11 | 9 |
| ED560-45 | 45 | 66 | 70 | 65 | 10 | 9 |
| ED560-50 | 50 | 72 | 80 | 69.5 | 10 | 9 |
