Working Condition:
Pressure: ≤ 0.25 MPa
Speed: ≤ 500 r/min
Temperature: -40℃ to 200℃
Medium: Acid, Alkali, oil and macromolecule suspend medium.
Agitator Mechanical Seal:
- Multiple springs
- Externally mounted seal
- Single face
- Unbalanced structure

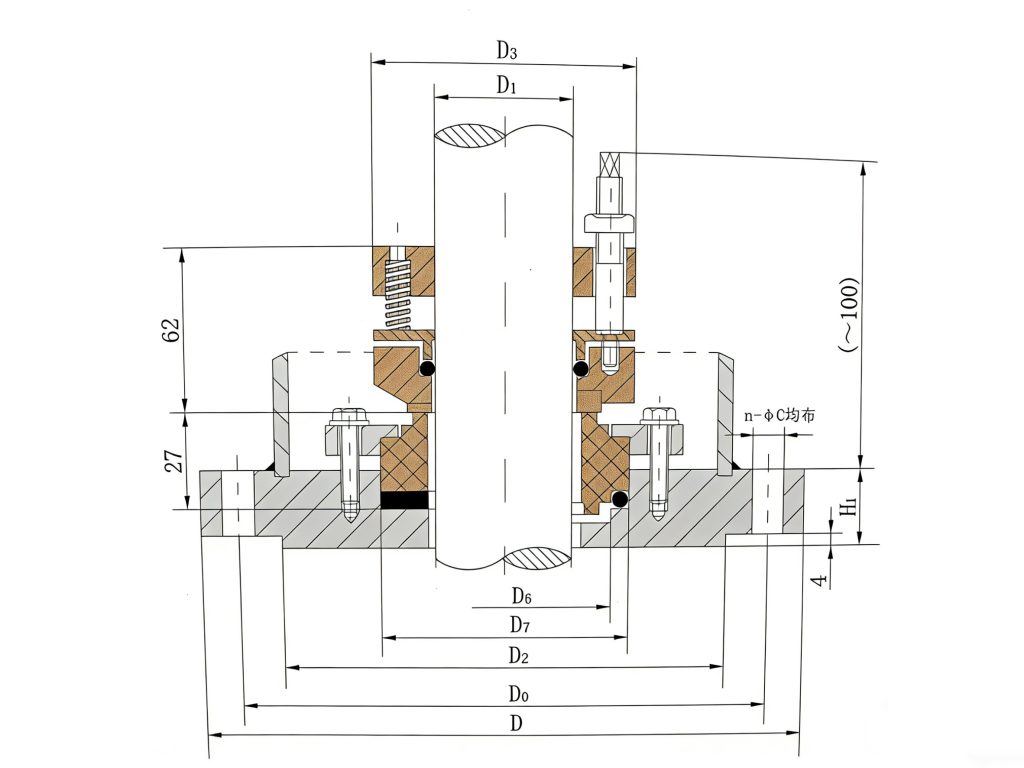

| Specification(mm) | D1 | D | D0 | D2 | D3 | D6 | D7 | H1 | n-φC |
| BDHG202-30 | 30 | 185 | 150 | 116 | 66 | 51 | 60 | 20 | 4-φ18 |
| BDHG202-40 | 40 | 225 | 170 | 135 | 76 | 61 | 70 | 20 | 4-φ18 |
| BDHG202-50 | 50 | 235 | 200 | 164 | 88 | 71 | 80 | 22 | 8-φ18 |
| BDHG202-65 | 65 | 235 | 200 | 164 | 103 | 86 | 97 | 22 | 8-φ18 |
| BDHG202-80 | 80 | 260 | 225 | 188 | 118 | 102 | 112 | 22 | 12-φ18 |
| BDHG202-95 | 95 | 290 | 225 | 220 | 135 | 117 | 127 | 24 | 12-φ18 |
| BDHG202-110 | 110 | 315 | 280 | 245 | 150 | 132 | 142 | 24 | 12-φ18 |
