Working Condition: Pressure: ≤ 3.3MPa Speed: ≤ 20m/sec Temperature: -20℃ to 180℃ Medium： Water, oils, and light chemical duties Size: 12mm / 16mm / 22mm…
Working Condition:
Pressure: ≤ 3.3MPa
Speed: ≤ 20m/sec
Temperature: -20℃ to 180℃
Medium： Water, oils, and light chemical duties
Size: 12mm / 16mm / 22mm
Material:
Stationary ring: SiC/ SSiC/ TC
Rotary ring: Carbon / SiC/ SSiC/ TC
Secondary seal: NBR / EPDM/ VITON/ Silicone
Spring & Metal parts: SUS 304 / SUS 316L

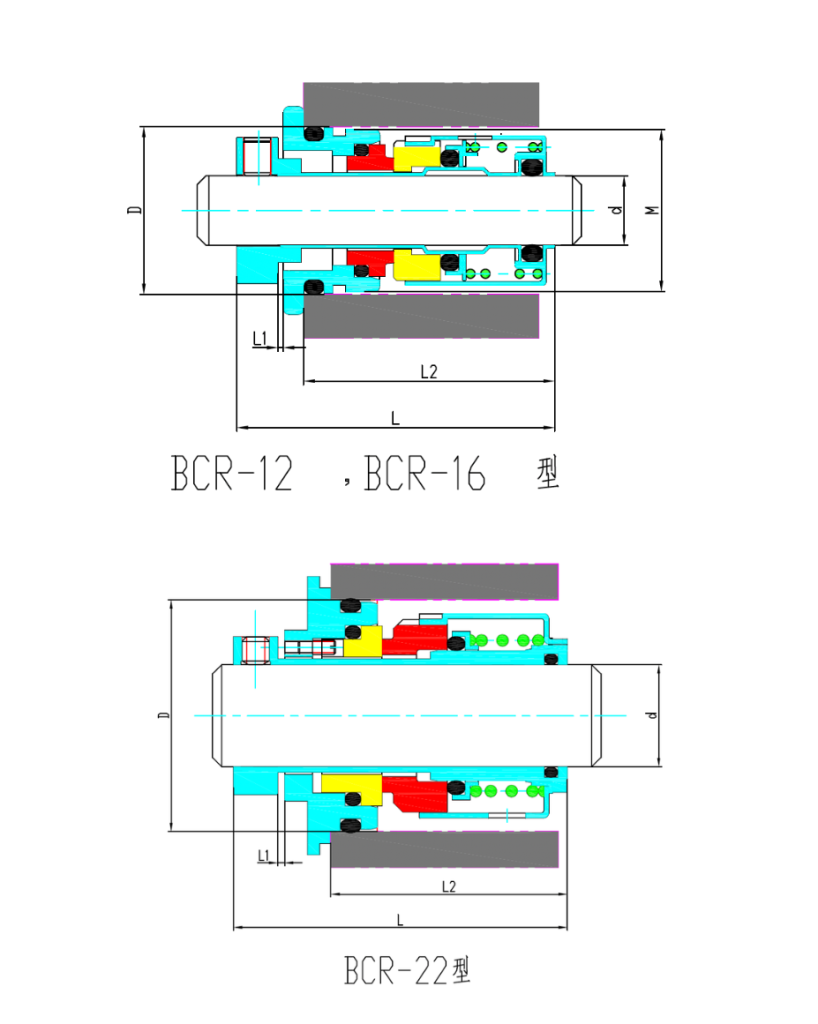

| Specification (mm) | d | D | M | L | L1 | L2 |
| BCR-12 | 12 | 29 | m28x1.5 | 54.7 | 1 | 43.2 |
| BCR-16 | 16 | 34 | m33x1.5 | 57.5 | 1 | 44.5 |
| BCR-22 | 22 | 50 | 72 | 2 | 50.5 |
