58B (59B)

Working Condition: Pressure: ≤ 3 MPa Speed: ≤ 20 m/sec Temperature: -40℃ to 250℃ Medium: Petroleum, chemical solvents, weak and medium corrosion, etc. Material: Stationary:…

Send Email

Leave Message

Single Mechanical Seal

Working Condition:

Pressure: ≤ 3 MPa

Speed: ≤ 20 m/sec

Temperature: -40℃ to 250℃

Medium: Petroleum, chemical solvents, weak and medium corrosion, etc.

Material:

Stationary: Ceramic / SiC/ SSiC/ TC

Rotary ring: Carbon/ SiC/ SSiC/ TC

Secondary seal: NBR/ EPDM/ VITON/ Teflon

Spring & Metal parts: SUS 304/ SUS 316L

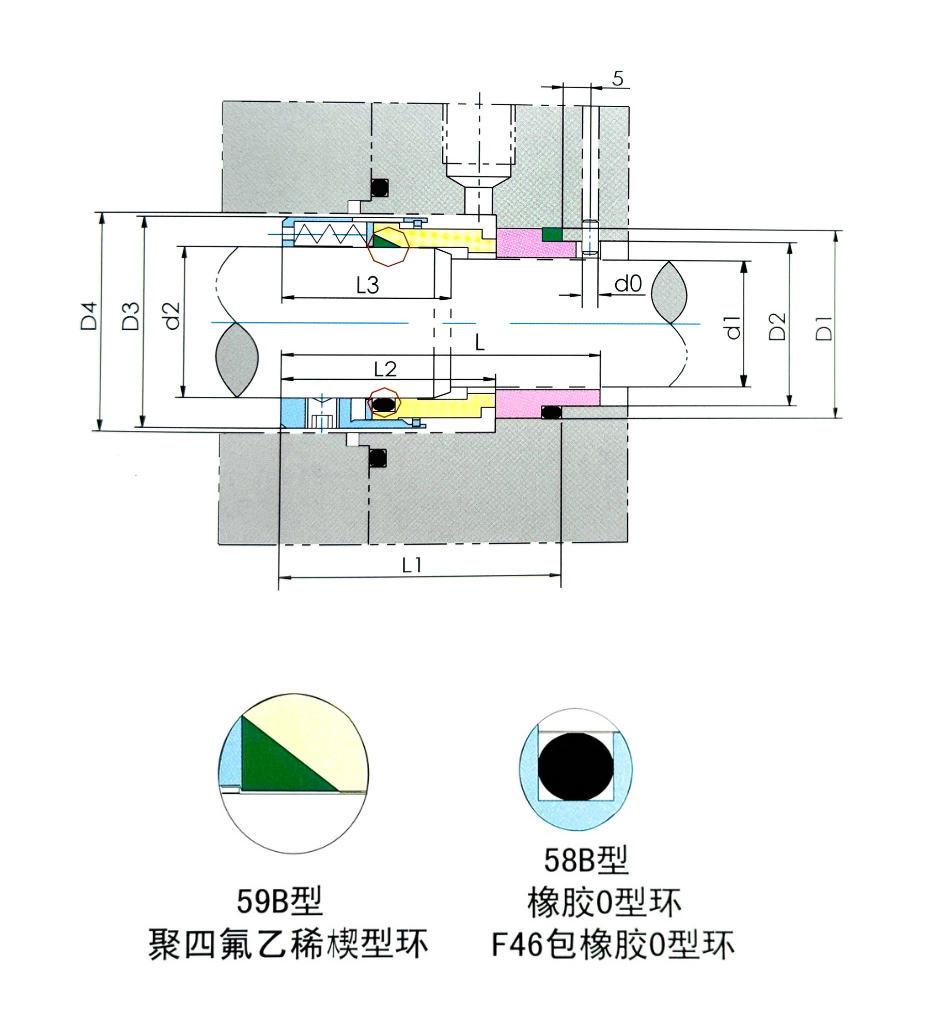

Specification(mm)	d1	d2	D1	D2	D3	D4	L	L1	L2	L3	d0
58B-14	14	18	25	21	32	34	49.5	42.5	30.5	24.5	3
58B-16	16	20	27	23	34	36	49.5	42.5	30.5	24.5	3
58B-18	18	22	33	27	36	38	52.5	45	31.5	25	3
58B-20	20	24	35	29	38	40	52.5	45	31.5	25	3
58B-22	22	26	37	31	40	42	52.5	45	31.5	25	3
58B-24	24	28	39	33	42	44	54.5	47.5	34.2	27.5	3
58B-25	25	30	40	34	44	46	54.5	47.5	34.5	27.5	3
58B-28	28	33	43	37	47	49	57	50	37.5	30	3
58B-30	30	35	45	39	49	51	57	50	38	30	3
58B-32	32	38	48	42	54	58	57	50	38	30	3
58B-33	33	38	48	42	54	58	57	50	38	30	3
58B-35	35	40	50	44	56	60	57	50	38	30	3
58B-38	38	43	56	49	59	63	59.5	52.5	39.5	29.5	4
58B-40	40	45	58	51	61	65	59.5	52.5	39.5	29.5	4
58B-43	43	48	61	54	64	68	59.5	52.5	39.5	29.5	4
58B-45	45	50	63	56	66	70	59.5	52.5	39.5	29.5	4
58B-48	48	53	66	59	69	73	59.5	52.5	39.5	29.5	4
58B-50	50	55	70	62	71	75	64.5	57.5	44	32.5	4
58B-53	53	58	73	65	78	83	64.5	57.5	44	32.5	4
58B-55	55	50	75	67	80	85	64.5	57.5	44	32.5	4
58B-58	58	63	78	70	83	88	69.5	62.5	49	37.5	4
58B-60	60	65	80	72	85	90	69.5	62.5	49	37.5	4
58B-63	63	68	83	75	88	93	69.5	62.5	49	37.5	4
58B-65	65	70	85	77	90	95	69.5	62.5	49	37.5	4
58B-70	70	75	92	83	99	104	77	70	55.5	42	4
58B-75	75	80	97	88	104	109	77	70	55.5	42	4
58B-80	80	85	105	95	109	114	77	70	55	42	4
58B-85	85	90	110	100	114	119	82	75	60	47	4
58B-90	90	95	115	105	119	124	82	75	60	47	4
58B-95	95	100	120	110	124	129	82	75	60	47	4
58B-100	100	105	125	115	129	134	82	75	60	47	4
